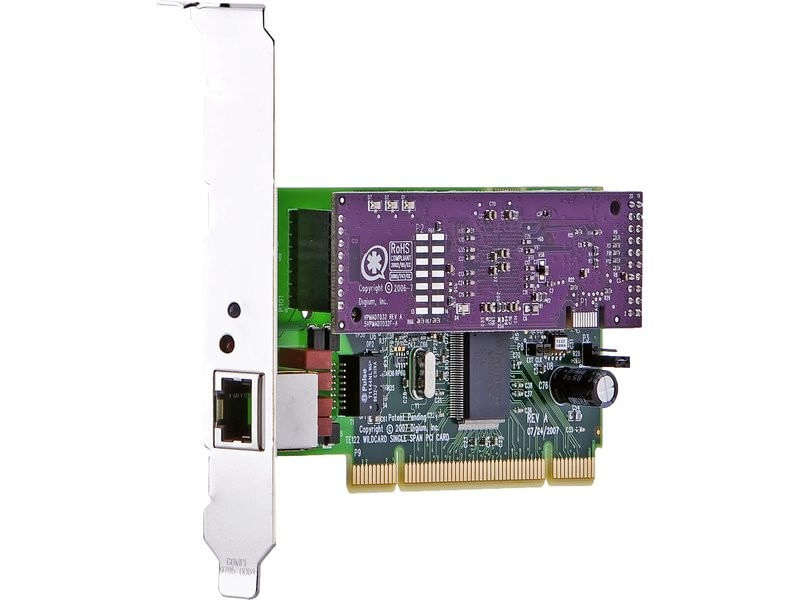

Single Span T1/E1 card with echo cancellation module VPMADT032. The Digium TE122 is a high-performance, cost effective digital telephony interface card with the power to create a seamless network, interconnecting traditional telephony systems with emerging Voice over IP technologies.
The TE122 is a single span, selectable T1 (24-channel), E1 (32-channel), or J1 (24-channel) card. The card utilizes Digium's VoiceBusâ„¢ technology. VoiceBus technology allows the TE122 to use an industry standard bus-mastering PCI interface, as found in millions of PCs worldwide, to maximize system compatibility and eliminate system conflicts. Improving upon the prior TE120P which does not offer expansion capabilities, the TE122 may be combined with Digium's VPMADT032 echo cancellation module to deliver 128ms of echo cancellation across 30 channels in E1 mode or 24 channels in T1 mode. Bundled with the VPMADT032, the product SKU is TE122B.
The TE122 supports both voice and data modes on its single span. For example, the card can support 12 channels dedicated to voice, routed directly to the Asterisk Open Source PBX, and 12 to data, handled by the underlying Linux operating system, thus eliminating the need for an external router. The TE122 works in both 3.3V and 5V PCI slots by auto detecting the slot's voltage.
Used in conjunction with AsteriskÂ®, the TE122 can be used to deliver a wide range of PBX and IVR services to the network or handset including Voicemail, Call Conferencing, Three-way Calling, and VoIP Gateways.
