Ubiquiti AirMax Sector 5G-17-90

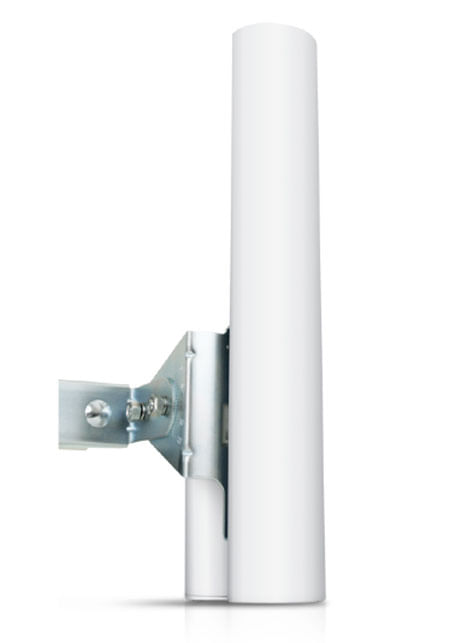

Ubiquiti AirMax BaseStation AM-5G17-90 Ubiquiti 5GHz 17dBi 90 degree MIMO AirMax BaseStation Sector Antenna and bracket system

World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Product Specification

• Frequency Range: 5.10-5.90GHz

• Gain: 16.1-17.1dBi

• Polarization: Dual Linear

• Cross-polarization Isolation: 22dB min

• H-Pol beamwidth (6 dB): 72 deg

• V-Pol beamwidth (6 dB): 93 deg

• Elevation Beamwidth (6dB): 8 deg

• Electrical Downtilt: 4 deg

• ETSI Specification: EN 302 326 DN2

• Dimensions: 367X63X41mm

• Weight: 1.1kg

• Wind Loading: 120 mph

• Includes two SMA RP jack sockets for radio connections.

• Antenna is supplied with two pigtails to connect a Rocket M5
